A-Frame, 20W-23H-2R-2A-RM | Tuff Built

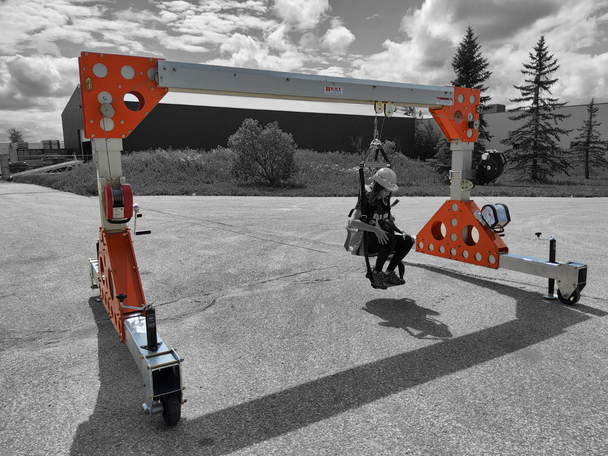

The Tuff Built 70787 A-Frame is a robust rescue system built to support a variety of safety operations. This model is typically used in confined space rescues construction sites and other industrial environments where workers need to be lowered or raised safely. The A-frame design is known for providing greater stability compared to tripods or other lifting mechanisms making it an ideal choice for situations requiring both safety and precision.

Key Features:

• A-Frame Design:

  • The A-frame structure features two angled legs supporting a horizontal crossbeam at the top. This configuration maximizes stability ensuring that the frame remains balanced even during the lifting or lowering of personnel or heavy equipment.

  • The A-frame is ideal for rescue operations as it is designed to distribute weight evenly allowing it to safely bear the load of workers equipment or tools during operations in confined or hazardous spaces.

• Dimensions:

  • 20W (Width): The width of 20 inches refers to the base spread of the A-frame. This provides a solid foundation to ensure the frame remains stable during use. The 20-inch width is ideal for maintaining balance especially when hoisting or lowering loads.

  • 23H (Height): The height of the A-frame is 23 inches providing enough clearance to safely lift or lower personnel or equipment from confined spaces or elevated positions.

• 2R (2 Rescue):

  • 2R indicates that this A-frame is designed to be used in rescue operations. It can support the rescue of two individuals or multi-person rescues in emergency situations.

  • This feature makes the Tuff Built 70787 A-frame suitable for operations that require lifting multiple people or equipment at once.

• 2A (2 Anchor Points):

  • 2A refers to the two anchor points integrated into the system. These anchor points are used for attaching lifelines ropes or winches to safely lower or raise workers.

  • Having two anchor points offers redundancy increasing safety by ensuring that at least one anchor point remains secure in case of failure or equipment malfunction.

• RM (Rescue Model):

  • RM stands for Rescue Model which means this A-frame system is specifically designed for rescue operations. The system is intended for emergency use when rapid deployment and high safety standards are critical.

• Heavy-Duty Construction:

  • Built from industrial-strength materials such as steel or aluminum the Tuff Built 70787 A-frame is designed to endure the tough conditions of confined space rescue construction environments and industrial work settings.

  • The frame is designed to be corrosion-resistant making it suitable for outdoor use and capable of enduring harsh weather conditions.

• Portability:

  • The A-frame is built to be lightweight and portable allowing for quick setup and easy transportation to various locations where rescue operations or safety procedures are required. Despite its heavy-duty construction it can be folded or disassembled for easy storage and movement.

Common Uses:

• Confined Space Rescue:

  • The Tuff Built 70787 A-frame is often used for confined space rescues such as accessing manholes tanks silos or pits. It provides a stable platform for rescuers to safely lower or lift individuals from hard-to-reach areas.

• Fall Protection in Construction:

  • In construction sites or industrial settings the A-frame system is used as part of a fall protection system to prevent falls from height and to safely lift or lower workers from elevated platforms or structures.

• Industrial Safety:

  • This A-frame is used in industrial safety situations such as during maintenance inspection or repair tasks in dangerous or confined areas. The A-frame allows workers to be safely lifted or lowered into hazardous environments.

• Rescue Operations:

  • In emergency situations the Tuff Built 70787 A-frame can be used to rescue individuals who are trapped or stranded in hazardous environments. It provides a secure method for hoisting and lowering individuals particularly in cases where other methods of access are not viable.

Specifications:

• Dimensions:

  • Width: 20 inches (base spread of the frame providing stability)

  • Height: 23 inches (height from base to top allowing for sufficient clearance during lifting or lowering operations)

• Material:

  • Likely made from high-strength steel or aluminum ensuring durability and resilience under extreme conditions.

• Weight Capacity:

  • The Tuff Built 70787 A-frame is designed to support significant weight often in the range of several hundred pounds (exact weight capacity depends on the specific frame design and configuration).

  • It is capable of safely lifting or lowering multiple personnel or equipment during a rescue operation.

• Anchor Points:

  • Two anchor points for secure attachment of lifelines ropes or winches. This ensures that personnel are safely secured and can be hoisted or lowered without risk of slipping or falling.

Safety Considerations:

• Routine Inspection:

  • Regular inspections of the A-frame are necessary to ensure that the frame anchor points and all components are free from damage corrosion or wear. Check for loose parts or any issues that may affect the system's performance.

• Proper Setup:

  • Always ensure that the A-frame is set up on stable level ground to ensure maximum safety during operation. The legs of the frame should be positioned securely and anchor points must be properly secured to prevent tipping or failure.

• Training:

  • Personnel must be trained in the safe operation of the A-frame system including how to attach safety lines how to operate the lifting system and how to safely perform rescue operations.
