Pipe Measuring Tools

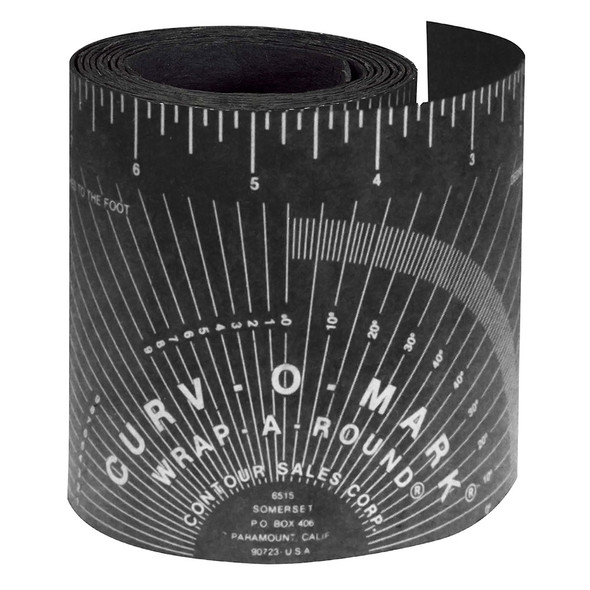

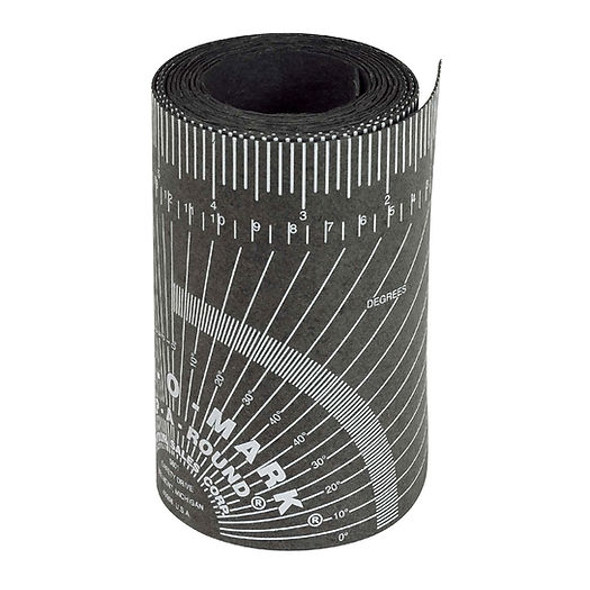

Curv-O-Mark style Wrap-A-Round rulers are an easy-to-use tool for pipe fitters and welders. Each are printed with a scale in inches, an inch chart, tangent chart, and other helpful markings to help make a straight line around pipes. Made from flexible...

Use: For use with Jackson Safety #6 Centering Head Fit: Suitable for marking and should not be used as a center punch Material: Made of hardened steel slider closed

Made with an anodized rust proof aluminum for lasting protection Arms are precisely aligned with spring tension joints to guarantee accuracy and rigidity Holder accommodates flat or round soapstone and pencils Folding type design. Mini, small, and...

Designed for use with the #1 Contour Markers, the adapter simplifies handling and increases layout capacity. It permits use of all for sides of the Contour Marker and allows marking on small diameter pipe, over nipples, old weld, or on wrapped pipe. The...

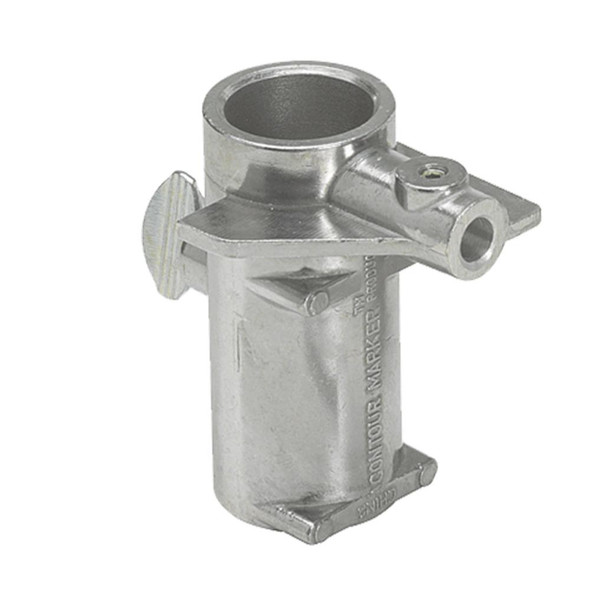

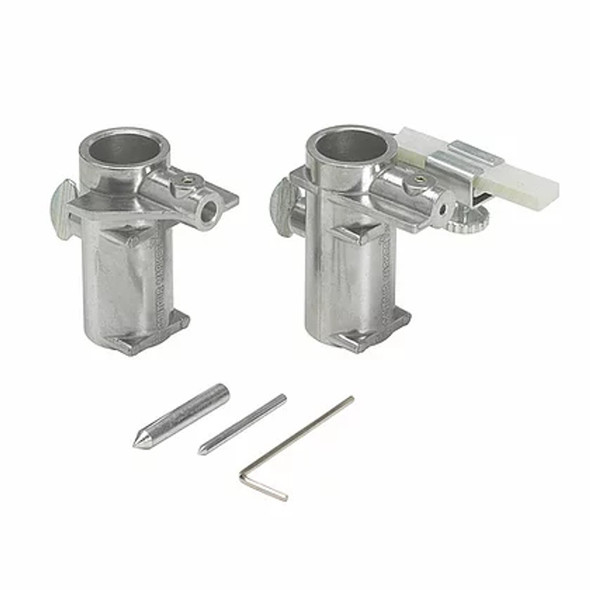

Heads feature radius set points cast in alignment with marking pointer for easy setting Equipped with 1/4" in screws and squared on back for perpendicular alignment Stationary head holds 1/4" in case hardened center point Includes: Allen Wrench ...

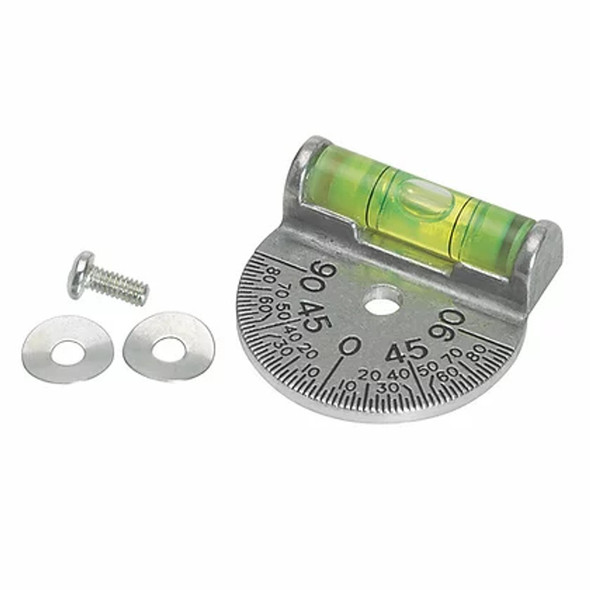

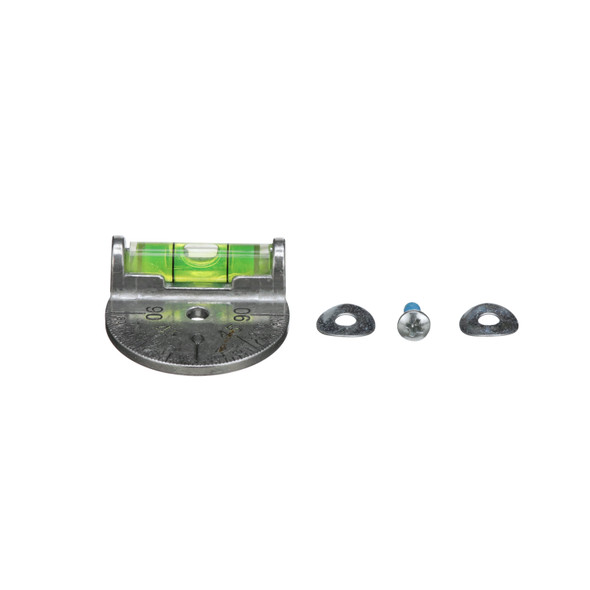

The Dial Set Level is an adjustable bubble protractor used with a number of popular Jackson Safety Curv-O-Mark tools, including #4, #6, #7, #8, #20, and #33. The protractor covers 180 degrees thru 2 90-degree quadrants. The bubble is cast in the aluminum...

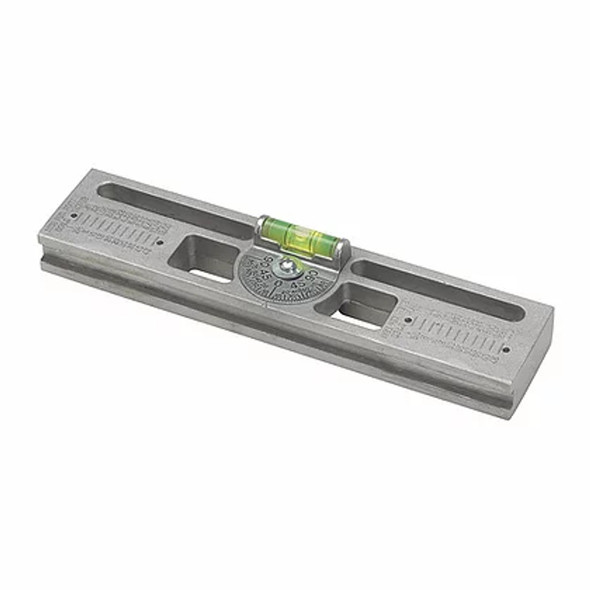

The Curv-O-Mark Pro-Mag Level is a lightweight and easy to use tool for pipe fitters, welders, jig builders, or anyone determining angles. It has two cast-in 25-pound pull magnets that hold securely to any steel surfaces. The unit has a 360-degree...

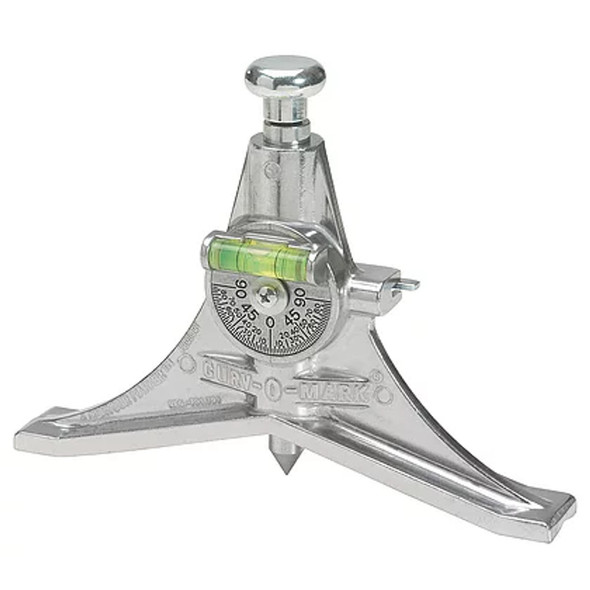

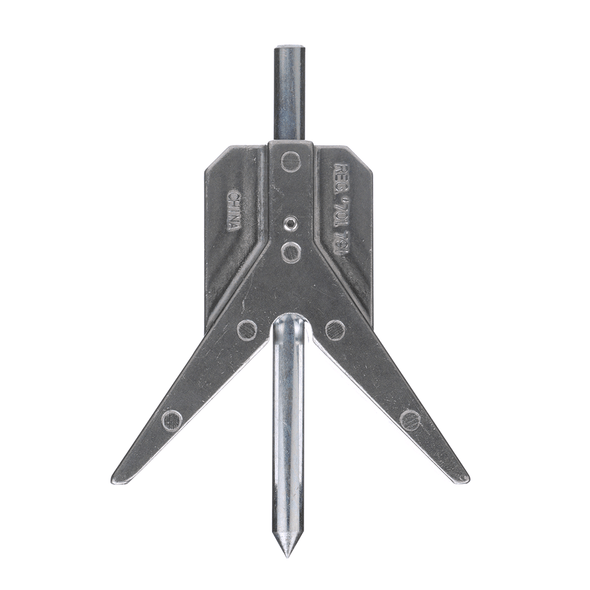

Aids in the setting of center lines, establishing angles and marks for butt-ins, location points inside pipes and tanks, laying out key ways, and measuring declivity. The standard head model is used on 1/2" diameter pipe and up. It features a 4" Y type...

Designed for use with #4 Jumbo Contour Markers, the adapter simplifies handling and increases layout capacity. It permits use of all for sides of the Contour Marker and allows marking on small diameter pipe, over nipples, old weld, or on wrapped pipe...

Made of lightweight cast aluminum. Non-magnetic and can be used on PVC pipe Can be used as a dial degree utility level or with attachments for two-hole flange alignment Contains and adjustable DSL in protective housing to protect from weld spatter and...

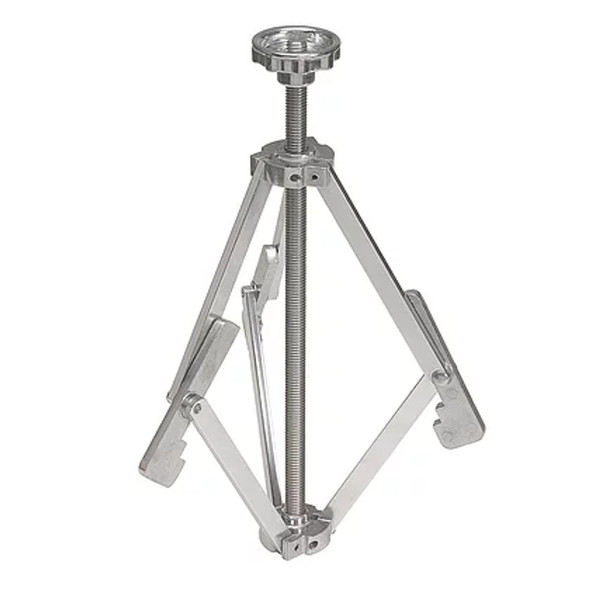

The Jackson Safety Pipe Flange Aligner (#10) is a self-determining flange aligning tool that allows quick and accurate measuring. The aligner inserts easily into the pipe, centers snugly against the pipes inside diameter, and automatically aligns with...

Removes the difficulty of flange aligning and squaring Notched at either end for ease in aligning on the centerline of the pipe Includes two 25-pound pull, cast-in magnets for holder in either a flat horizontal or vertical position Base will accept...

The Curv-O-Mark Universal Level (#33) is a must have multipurpose tool. Featuring a 360-degree adjustable protractor dial bubble (DSL,) the level has two cast-in 25-pound magnets to securely hold the unit in place on any steel surface including the...

Aids in the setting of center lines, establishing angles, and marks for butt-ins, locating points inside pipes and tanks, laying out keyways and measuring declivity. Jumbo centering head is ideal for 1" pipe diameter and up and has an 8" Y-type head and...

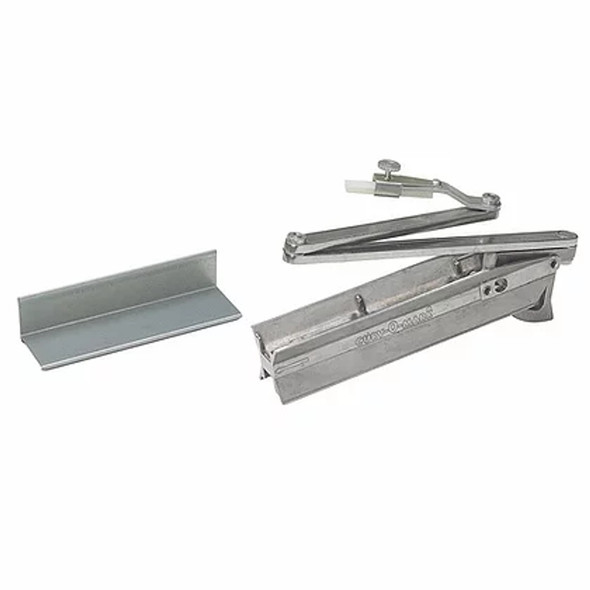

This is a compact and timesaving tool that can be used to lay out pipe and structural steel joints. Laterals at any angle, tees, wyes, crosses, elbows - any type or size of joint can be quickly and precisely laid out. No more complicated mathematical...

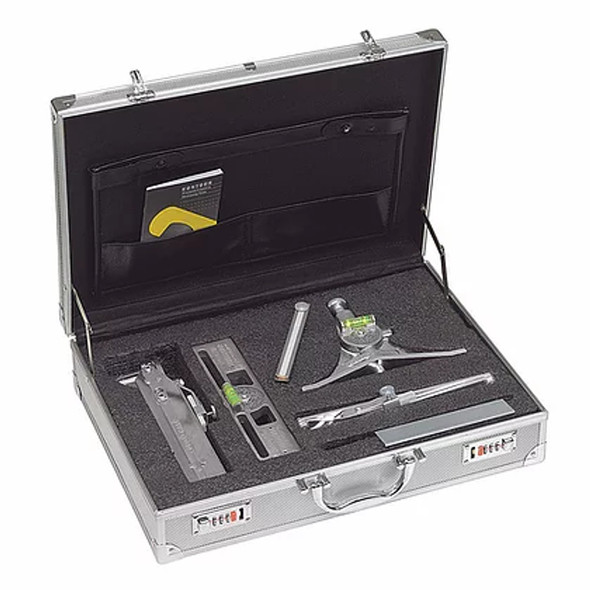

The Jackson Safety Contour Layout Kit comes pre-assembled with plenty of must-have tools and offers a great value. Everything comes in a secure metal carrying case, so you can transport your tools of the trade easily and conveniently. Set includes: #1...
