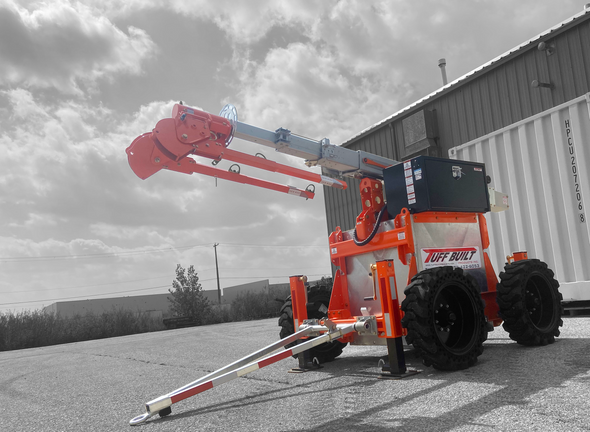

Exosphere Anchor System, 4x4 All Terrain Propane | Tuff Built

The Exosphere 4×4 All-Terrain Anchor System is a rugged fully self-contained mobile fall arrest anchor unit designed for remote hazardous environments where traditional overhead anchors aren’t feasible. It offers hydraulic mast deployment with remote control and features for extreme terrain access.

Core Features (All Models)

Operating System / Controls

• Self-contained hydraulic operating system.

• Remote control operation — wireless or wired for driving setup and mast height control.

Mobility & Terrain

• Heavy-duty 4×4 All-Terrain drive base.

• Solid rubber skid steer tires designed for rugged site access.

Safety & Alerts

• Multiple emergency stop switches.

• Audible warning alarm.

• Hi-vis strobe lighting for visibility on site.

Stability & Deployment

• Hydraulic leveling jacks for stabilization during use.

• Manual rescue system built into the base.

Construction

• Heavy-duty steel welded frame — built for industrial use.

Anchor Points

• Supports multiple anchor points (typically two standard; expandable configurations may be available).

Model Specifications

• Max Anchor Height: 24 ft (~7.3 m)(70936) 38 ft (~11.6 m)(70924)
• Fuel Type: Propane
• Anchor Points: 2 standard
• Drive: 4×4 All-Terrain
• Frame: Heavy-duty Steel Weld
• Tires: Solid Skid Steer

Additional Notes

Anchorage System Details

• The 4-stage telescoping mast provides vertical adjustment up to the rated height depending on model.

• Anchor points are typically configured for two users with width configured per component sets.

Standards & Compliance

While the specific catalogue listings don’t show detailed compliance codes for these exact part numbers the Exosphere 4×4 family generally meets common fall-protection standards in major industrial markets (e.g. ANSI Z359 OSHA fall protection) as shown on distributor sites for similar models.
