Honeywell

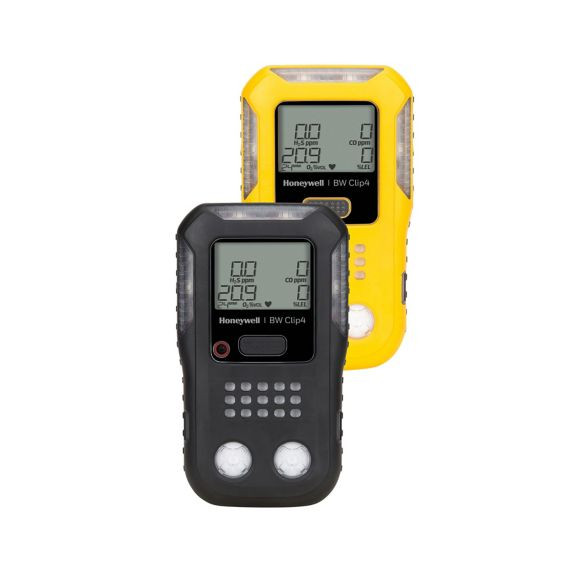

BWC4-Y-N Clip4 4-Gas Detector (O2, LEL, H2S, CO), Yellow | BW
(No reviews yet)
Write a Review
- SKU:
- BWC4-Y-N
Description
The latest in wearable 4-gas detection. Just clip it on and get the job done. Because for 2 years, you know – IT'S ON.
Product Overview:
When you’ve got your hands full in the field, you need no hassle gas detection you can count on: The Honeywell BW™ Clip4 four-gas detector
Wearable, easy multi-gas detection that’s always on. No charging, no battery replacement, no hassle. Simpler, low cost of ownership guaranteed by the Honeywell commitment to quality, and backed by a full ecosystem of supporting technologies. When you clip on the Honeywell BW™ Clip4 you know – it’s on. Always On: 2-Year Continuous Runtime. Once activated, you can rest assured that the Honeywell BW™ Clip4 is always on. The Honeywell BW™ Clip4 is easy to wear and use. Lower your maintenance costs with two years of continuous runtime without charging and no battery or sensor replacements. Simply turn your new detector on and then after two years replace it for a new one.
Features & Benefits:
- 2 year continuous runtime
- It's always on
- Simple one-button operation
- Low cost of ownership
Quick Specs:
- H2S, CO, LEL, O2
- No hassle
- No charging
- No sensor/battery replacements
- IntelliDoX compatible
Dimension & Weight
- Weight
- 233 gram
- 8.2 ounce av
- Weight range - 233 g gram
- Instrument Size - 12.0 x 6.8 x 3.2 cm / 4.7 x 2.7 x 1.3 in.
Category
- Sub-Category
- Multi-Gas
- Multi-Gas Detector
Range
- Sensor Range
- H2S (0-100ppm), CO (0-1000ppm), O2 (0-25%vol), LEL (0-100%LEL)
- Hydrogen Sulfide (H2S) 0-100 ppm, Carbon Monoxide (CO) 0-1,000 ppm, Oxygen (O2) 0-25% Vol., Combustible Gases (LEL) 0-100% LEL
- Humidity Range
- 5 to 95% RH (Non-Condensing) percent
- 5%-95% percent
Temperature
- Minimum Temperature
- -20
- -20 degree Celsius
- -4 degree Fahrenheit
- Maximum Temperature
- 131 degree Fahrenheit
- 50
- 50 degree Celsius
Features
- Alarm Included - Yes
- Series Name - Honeywell BW Clip4
Alarm
- Alarm Type
- Audible (95 dB)
- Vibrating
- Visual
- Alarm Settings - Low, High, STEL, TWA, OL (Over Limit)
Battery & Charging
- Battery Run Time - 2 Years hours
- Batteries Required - Yes
- Batteries Included - Yes
Certifications
- Standards
- ATEX: II 1G Ex ia IIC T4 Ga
- CE European Conformity
- IECEx: Ex ia IIC T4 Ga
- UL: Class I, Div 1, Group A, B, C, D
- UL: Class I, Zone 0, Group IIC
- Certifications - Performance - Class I, Div 1, Group A, B, C, D Class I, Zone 0, Group IIC, ATEX: II 1G Ex ia IIC T4 Ga, IECEx: Ex ia IIC T4 Ga, CE
Datalogging
- Datalogging Capable - Yes
- Datalogging - 70 most recent events
Display
- Display Type - LCD
- Display Readout - Real-Time Gas Concentrations Shown on LCD
- Display Included - Yes
Features & Benefits
- Features & Benefits
- Built-In Concussion Proof Boot
- Compact Profile Even Working In Tight Spaces
- Compatible with IntelliDox Docking Station for Automated Bump Tests and Calibration
- Daily Full Function Self-Test of Sensors, Battery Status, Circuit Integrity, and Audible/ Visual Alarms
- Durable, Ergonomic and Wearable Doesn’t Weigh You Down
- Flashing Red Non-Compliance Indicators Warn Workers that the Detector Has Not Been Bump Tested According to Schedule
- Intuitive LCD Icons
- Real-Time Gas Concentrations Shown on LCD
- Simple One-Button Operation
- Tested to Last In Extreme Environments
- User-Friendly Tamperproof Operation with Just One Button
Options
- User Options
- Adjust STEL Period (5-15 min in 1 min Intervals)
- Bump Test Interval
- Calibration Due Date (1 to 365 Days, or Set to Zero for Off)
- Calibration Interval
- Calibration Span Levels
- Individual Sensor Enable/Disable
- Latching Alarms
- Select Combustible Gases Measurement: 0-100% LEL or Methane Gas 0-5.0% v/v
- Stealth Mode
Sensor
- Sensor Type - Infrared (IR)
- Number of Sensors Included - 4
Warranty
- Warranty
- 2 Years Including Sensors and Battery
- Full two-year warranty including sensors and battery
Standards & Certifications
- Ingress Protection - IP68
Additional Specifications
- Gas Type - H2S, CO, O2, LEL
- Decibels - 95 decibel
- Combustible Concentration - 0-100% LEL, Methane Gas 0-5.0% v/v
- Combustible - Yes
- Background Gas - Hydrogen Sulfide (H2S), Carbon Monoxide (CO), Oxygen (O2), Combustible Gases (LEL)
Technical Specifications
- Tests - Activated Detector Automatically Perform One Internal Diagnostic Test Every 24 Hours (Sensors, Battery, and Circuitry)
- Resolution
- Carbon Monoxide (CO) 1 ppm
- Combustible Gases (LEL)* 1% LEL
- Hydrogen Sulfide (H2S) 1/0.1 ppm
- Oxygen (O2) 0.1% vol
- Keypad Type - One Button Operation
- Gases Detected - Hydrogen Sulfide (H2S), Carbon Monoxide (CO), Oxygen (O2), Combustible Gases (LEL)
- Event Logging - 70 Most Recent Events
