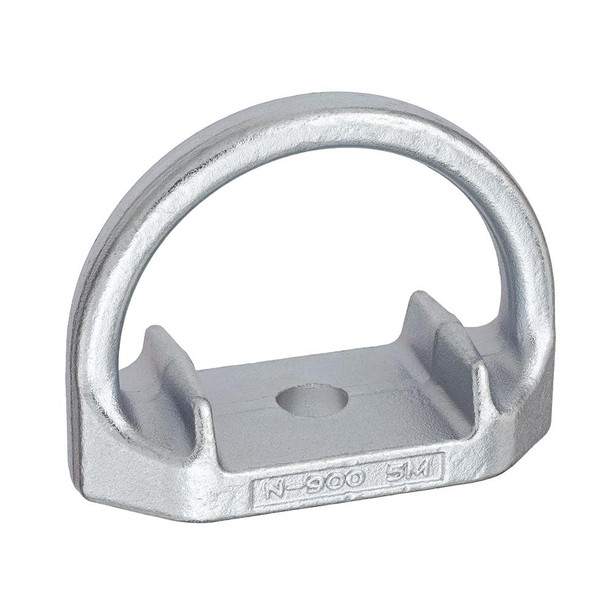

Permanent Anchorage

Description

A complete fall arrest system requires three primary components; approved full body harness connector and anchorage connector. Peakworks anchorage connectors are made of high quality materials that allow them to meet the most recent ANSI CSA and OSHA requirements.

• Durable: Built from top quality materials ensuring high strength and durability to stand up to the toughest environments; The anchor should be located directly above the worker to prevent swinging
• Load Support: This permanent steel anchorage provides a secure point of attachment for a complete fall arrest system and is built with a minimum tensile strength of 5000 lb. with a 1/2" diameter
• Certified: These anchors can be connected to a wide variety of materials such as steel wood and concrete and effectively meet ANSI Z359.18 CSA Z259.15 and OSHA requirements

Technical Specifications

• Application: Concrete, Steel, Beam
• Category: Permanent
• Standards: ANSI Z359.18, CSA Z259.15, OSHA
• End Configuration: D-Ring
• Hole Size (in.): 1/2", 5/8" , 3/4"
• Hole Size (mm.): 13 mm, 16mm, 19mm
• Minimum Tensile Strength: 5,000 lbs.
• Total Weight Capacity (lb.): 310 lbs.
• Total Weight Capacity (kg.): 141 kgs.

Permanent Anchor - 1/2" (13mm) Hole– Technical Specs

Permanent Anchor - 5/8" (16mm) Hole– Technical Specs

Permanent Anchor - 3/4" (19mm) Hole– Technical Specs
