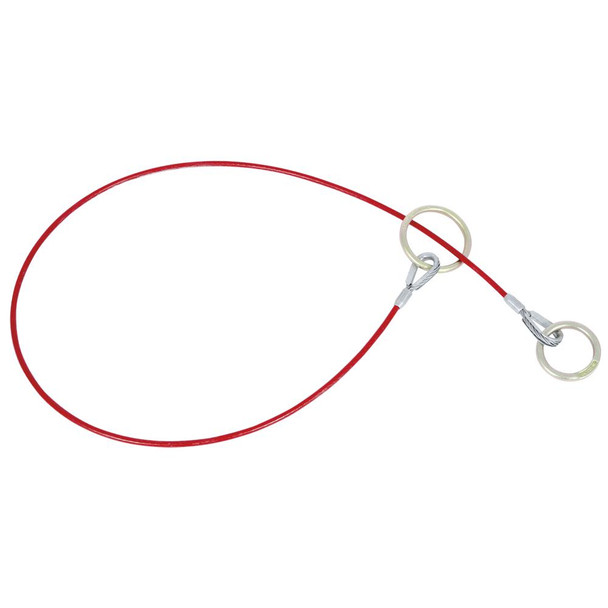

Cable Anchor Sling - 2 O-Rings | Peakworks

Description

The Peakworks anchorage connector provides piece of mind when a temporary anchor is required. Peakworks offers anchor slings using two Material styles: abrasion-resistant webbing or galvanized cable. All Peakworks anchor slings are built to a minimum tensile strength of 5000 lbs. All Peakworks anchor slings meet or exceed ANSI and CSA standards.

• Sling: This efficient anchor sling is portable and 4 ft in length; The anchor sling features 2 eye-rings one on each end
• Applications: Anchor slings are used to hold winches and pulleys to an anchor giving you piece of mind when a temporary anchor is required
• Material: The anchor sling is a versatile and reusable anchor point; Made with a durable ¼” PVC coated galvanized cable and built with a minimum tensile strength of 5000 lb.
• Frequently Bought Together: OSHA compliant and meets ANSI Z359.7 standards; Pair this Anchor Sling with Peakworks Vertical Lifeline Rope or Peakworks Self-Retracting Lifelines for added protection and worker security

Technical Specifications

• Anchor Sling Length (ft.): 4 ft, 6 ft
• Anchor Sling Length (m.): 1.2 m, 1.8 m
• Application: Concrete, Steel, Beam
• Category: Permanent, Temporary
• Standards: ANSI standards, CSA standards
• Diameter: 1/4" (6mm)
• End Configuration: O-Ring
• Material: PVC Coated Galvanized Cable
• Minimum Tensile Strength: 5,000 lbs.
• Total Weight Capacity (lb.): 310 lbs.
• Total Weight Capacity (kg.): 141 kgs.

Cable Anchor Sling - End Configuration O-Ring Ends

Cable Anchor Sling - End Configuration O-Ring Ends - 4 '– Operation Manual– Technical Specs

Anchor Sling - Cable - End Configuration O-Ring Ends - 6 '– Operation Manual– Technical Specs
