Honeywell

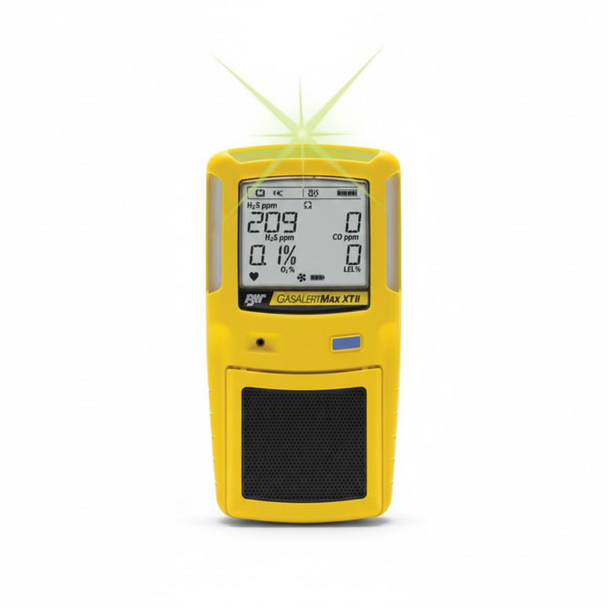

GasAlertMax XT II with H2S, LEL, O2, CO | BW
(No reviews yet)
Write a Review
- SKU:
- XT-XWHM-Y-NA
Description
Go the distance and save with this smart, simple and economical way to compliance. Product Overview: Honeywell BW™ Max XT ll is the smart, simple, and economical way to compliance. Workers feel safe and incidents are minimized so everyone will be able to do more. That means savings realized from business continuity and productivity. Simple operation, with SmartSample pump. Honeywell BW™ Max XT ll reliably monitors up to four hazards and combines straightforward one-button operation with our robust, motorized pump for intelligent, remote sampling, ideal for confined spaces. The Honeywell BW™ Max XT ll is fully compatible with MicroDock II automated test and calibration system.
Features & Benefits:
- Monitors H2S, CO, O2 and combustibles
- One-button operation with robust, motorized pump
- Compatible with MicroDock II
Quick Specs:
- Size: 5.1 x 2.8 x 2.0 in. / 13.1 x 7.0 x 5.2 cm
- Weight: 11.5 oz. / 328 g
- Temperature: -4 to 122°F / -20 to 50°C
- Readily enables to communicate with Motorola MOTOTRBO
Dimension & Weight
- Weight
- 11.5 ounce av
- 328 gram
- Weight range - 328 g gram
- Instrument Size - 5.1 x 2.8 x 2.0 in. / 13.1 x 7.0 x 5.2 cm
Category
- Sub-Category
- Multi-Gas
- Multi-Gas Detector
Range
- Sensor Range
- CO: 0-1,000 ppm
- H2S: 0-200 ppm
- LEL: 0-100% and 0-5.0% v/v
- O2: 0 to 30.0%
- Humidity Range
- 10 to 100% RH (Non-Condensing) percent
- 10%-100% percent
Temperature
- Minimum Temperature
- -20
- -20 degree Celsius
- -4 degree Fahrenheit
- Maximum Temperature
- 122 degree Fahrenheit
- 50
- 50 degree Celsius
Features
- Alarm Included - Yes
- Series Name - Honeywell BW Max XT II
- Languages - English, French, German, Spanish, Portuguese
Alarm
- Alarm Type
- Audible (95 dB)
- Vibrating
- Visual
- Alarm Settings
- Low, High, STEL, TWA, OL (Over Limit), Low Battery, Pump
Battery & Charging
- Charging Time - 6 hours
- Battery Run Time
- 13 Hours hours
- 8 Hours @-20°C hours
- 8-13 hours
- Batteries Required - Yes
- Batteries Included - Yes
Certifications
- Standards
- ATEX: X g II 1 G Ga Ex ia IIC T4
- BR-Exia IIC T4
- IECEx: Ga Ex ia IIC T4
- UL: Class I, Div 1, Group A, B, C, D
Datalogging
- Datalogging Capable - Yes
- Datalogging
- 375 hours at 15-second intervals
- Standard Datalogging and Event Logging
Display
- Display Type - LCD
- Display Readout - Low, High, STEL, TWA, OL (Over Limit), Low Battery, Pump
- Display Included - Yes
Features & Benefits
- Features & Benefits
- Best in Class Block Detection with Semi-Conductor Pressure Sensor
- Bright Wide-Angled Visual Alarm Bars
- Built-In Concussion Proof Boot
- Compact and Lightweight Design Makes It Comfortable to Wear
- Continuous LCD Shows Real-Time Gas Concentrations
- Continuous Visual Compliance with IntelliFlash™
- Conveniently Manage Your Detector with Fleet Manager II
- Equipped with Standard Datalogging and Event Logging
- Integrated Sampling Pump with Reliable Diaphragm Technology
- Multi-Language Support in English, French, German, Spanish and Portuguese
Filter
- Filter Included - Yes
Options
- User Options
- Calibration IR Lock
- Confidence Beep
- Confidence Interval
- Datalog Interval
- Detector Identification
- Force Block Test
- Force Bump Test when Overdue
- Force Calibration when Overdue
- Language Choices (Five)
- Latching Alarms
- Location Selection
- Low Alarm Acknowledge
- Safe Display Mode
- Safety (Sensor) Lock
- Sensor Configuration
- Set Custom Start Up Message
Sampling
- Sampling Pump Range
- 75 ft meter
- 75ft (23m) meter
- Sampling Pump Included
- Yes
Sensor
- Sensor Type - Semi-Conductor Pressure Sensor
- Number of Sensors Included - 4
Shelf Life
- Operating Life - 2 years
Warranty
- Warranty
- 2 Years Including All Sensors
- Full two year warranty including all sensors
Wireless
- Wireless Technology - BLE
Standards & Certifications
- Ingress Protection
- IP66/67
- IP66/67
Additional Specifications
- Gas Type - H2S, CO, O2, LEL
- External Calibration - MicroCock II Automated Test and Calibration System
- Decibels - 95 decibel
- Combustible Concentration - 0-100% LEL, 0-5.0% v/v
- Combustible - Yes
Technical Specifications
- Tests - Audible/Visual Alarms on Activation, Sensors, Battery, Pump and Circuitry (Continuous)
- Sensor Life - 2 Years
- Sampling - Integrated Sampling Pump with Reliable Diaphragm Technology
- Pump Draw - Sample from up to 75 ft / 23m
- Keypad Type - One Button Operation
- Gases Detected - H2S, CO, O2, LEL
- EMC/RFI - EMC Directive: 2004/108/EC
- Attachment
- Concussion-Proof Boot
- Honeywell BW Connect
- MicroDock II Compatible
- Multi-Unit Cradle Charger
