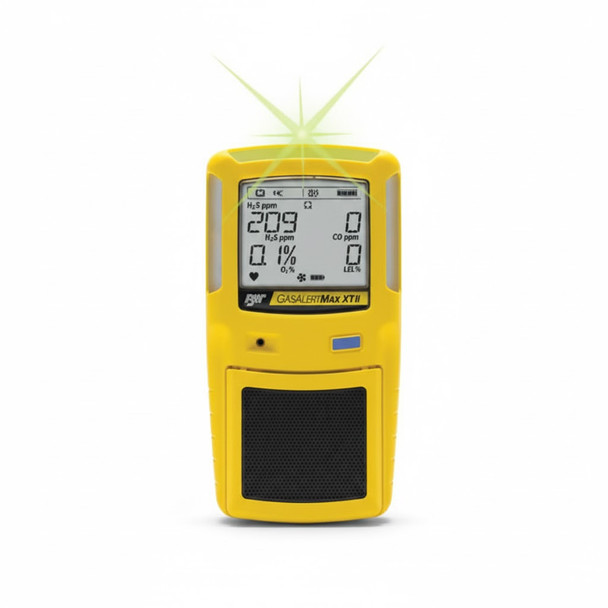

GasAlertMax XT II with H2S, LEL, O2, CO | Honeywell
- SKU:
- XT-XWHM-Y-NA
Description
Go the distance and save with this smart, simple and economical way to compliance. Product Overview: Honeywell BW™ Max XT ll is the smart, simple, and economical way to compliance. Workers feel safe and incidents are minimized so everyone will be able to do more. That means savings realized from business continuity and productivity. Simple operation, with SmartSample pump. Honeywell BW™ Max XT ll reliably monitors up to four hazards and combines straightforward one-button operation with our robust, motorized pump for intelligent, remote sampling, ideal for confined spaces. The Honeywell BW™ Max XT ll is fully compatible with MicroDock II automated test and calibration system.
Features & Benefits:
- Monitors H2S, CO, O2 and combustibles
- One-button operation with robust, motorized pump
- Compatible with MicroDock II
Quick Specs:
- Size: 5.1 x 2.8 x 2.0 in. / 13.1 x 7.0 x 5.2 cm
- Weight: 11.5 oz. / 328 g
- Temperature: -4 to 122°F / -20 to 50°C
Even the best products deserve expert maintenance!
Elevate your gas detectors’ potential with Honeywell's expert maintenance services! Maximize uptime, eliminate costs, and ensure on-time, on-budget project completion.
Brand
- BW
- Honeywell BW
Weight
- 11.5 ounce av
- 328 gram
Weight range
- 328 g gram
Instrument Size
- 5.1 x 2.8 x 2.0 in. / 13.1 x 7.0 x 5.2 cm
Sub-Category
- Multi-Gas
- Multi-Gas Detector
Sensor Range
- CO: 0-1,000 ppm
- H2S: 0-200 ppm
- LEL: 0-100% and 0-5.0% v/v
- O2: 0 to 30.0%
Humidity Range
- 10 to 100% RH (Non-Condensing) percent
- 10%-100% percent
Minimum Temperature
- -20
- -20 degree Celsius
- -4 degree Fahrenheit
Maximum Temperature
- 122 degree Fahrenheit
- 50
- 50 degree Celsius
Alarm Included
- Yes
Series Name
- Honeywell BW Max XT II
Languages
- English, French, German, Spanish, Portuguese
Alarm Type
- Audible (95 dB)
- Vibrating
- Visual
Alarm Settings
- Low, High, STEL, TWA, OL (Over Limit), Low Battery, Pump
Charging Time
- 6 hours
Battery Run Time
- 13 Hours hours
- 8 Hours @-20°C hours
- 8-13 hours
Batteries Required
- Yes
Batteries Included
- Yes
Standards
- ATEX: X g II 1 G Ga Ex ia IIC T4
- BR-Exia IIC T4
- IECEx: Ga Ex ia IIC T4
- UL: Class I, Div 1, Group A, B, C, D
Datalogging Capable
- Yes
Datalogging
- 375 hours at 15-second intervals
- Standard Datalogging and Event Logging
Display Type
- LCD
Display Readout
- Low, High, STEL, TWA, OL (Over Limit), Low Battery, Pump
Display Included
- Yes
Features & Benefits
- Best in Class Block Detection with Semi-Conductor Pressure Sensor
- Bright Wide-Angled Visual Alarm Bars
- Built-In Concussion Proof Boot
- Compact and Lightweight Design Makes It Comfortable to Wear
- Continuous LCD Shows Real-Time Gas Concentrations
- Continuous Visual Compliance with IntelliFlash™
- Conveniently Manage Your Detector with Fleet Manager II
- Equipped with Standard Datalogging and Event Logging
- Integrated Sampling Pump with Reliable Diaphragm Technology
- Multi-Language Support in English, French, German, Spanish and Portuguese
Filter Included
- Yes
User Options
- Calibration IR Lock
- Confidence Beep
- Confidence Interval
- Datalog Interval
- Detector Identification
- Force Block Test
- Force Bump Test when Overdue
- Force Calibration when Overdue
- Language Choices (Five)
- Latching Alarms
- Location Selection
- Low Alarm Acknowledge
- Safe Display Mode
- Safety (Sensor) Lock
- Sensor Configuration
- Set Custom Start Up Message
Sampling Pump Range
- 75 ft meter
- 75ft (23m) meter
Sampling Pump Included
- Yes
Sensor Type
- Semi-Conductor Pressure Sensor
Number of Sensors Included
- 4
Operating Life
- 2 years
Warranty
- 2 Years Including All Sensors
- Full two year warranty including all sensors
Wireless Technology
- BLE
Ingress Protection
- IP66/67
- IP66/67
Gas Type
- H2S, CO, O2, LEL
External Calibration
- MicroCock II Automated Test and Calibration System
Decibels
- 95 decibel
Combustible Concentration
- 0-100% LEL, 0-5.0% v/v
Combustible
- Yes
Tests
- Audible/Visual Alarms on Activation, Sensors, Battery, Pump and Circuitry (Continuous)
Sensor Life
- 2 Years
Sampling
- Integrated Sampling Pump with Reliable Diaphragm Technology
Pump Draw
- Sample from up to 75 ft / 23m
Keypad Type
- One Button Operation
Gases Detected
- H2S, CO, O2, LEL
EMC/RFI
- EMC Directive: 2004/108/EC
Attachment
- Concussion-Proof Boot
- Honeywell BW Connect
- MicroDock II Compatible
- Multi-Unit Cradle Charger
Size
- H: 5.1 in W: 2.8 in D: 2.0 in
