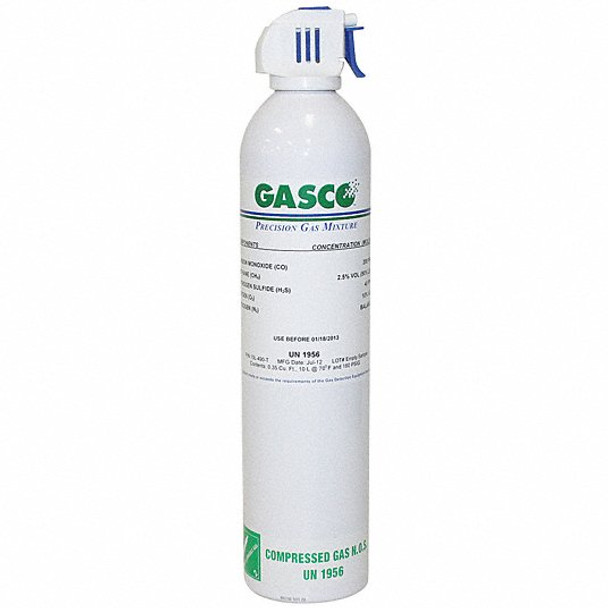

Bump Gas 50%CH4, 10% O2, 200ppm CO, 40ppm H2S | BW

Concept Controls Gas Mixture – Model 10L-490-T

Gas Composition (Nominal Concentrations):

• Methane (CH?): 50% vol.
  • Major component of the mixture; flammable and used to simulate “bump gas” conditions or for calibration of combustible gas sensors.
• Oxygen (O?): 10% vol.
  • Provides an oxidizing environment, essential for simulating real-world gas scenarios, including mining or industrial safety testing.
• Carbon Monoxide (CO): 200 ppm
  • Toxic gas at trace levels; included for calibration of CO detectors or process monitoring.
• Hydrogen Sulfide (H?S): 40 ppm
  • Highly toxic and corrosive gas; included for safety system and sensor calibration under controlled conditions.

Container Volume: 10 liters

Intended Use:

• Industrial safety training: Simulating “bump gas” events in mining or industrial environments.
• Sensor calibration: Calibration and testing of gas detection and monitoring systems for CH?, CO, and H?S.
• Laboratory and research applications: Safe simulation of multi-component gas mixtures under controlled conditions.

Special Features:

• High precision formulation: Each gas component is blended to precise concentrations for repeatable and reliable testing.
• Certified mixture: Produced under rigorous quality control with traceability to international calibration standards.
• Compact cylinder: 10L cylinder provides a portable solution for field or laboratory use.

Storage & Handling:

• Flammability hazard: Contains 50% CH?; keep away from sparks, flames, and heat sources.
• Toxicity hazard: CO and H?S are highly toxic—even at ppm levels. Ensure proper ventilation, personal protective equipment (PPE), and gas detection systems.
• Store cylinders in a cool, dry, well-ventilated area, upright and secured.
• Use compatible regulators and gas tubing rated for flammable and toxic gases.

Compliance & Standards:

• Manufactured in compliance with ISO 6142 and relevant ASTM standards for calibration gas mixtures.
• Suitable for environments requiring precise simulation of explosive or toxic gas scenarios.

Safety Notes:

• Only trained personnel should handle this mixture.
• Use in well-ventilated areas with appropriate gas detection and fire prevention measures.
• Ensure adherence to local regulations regarding the transport, storage, and use of flammable and toxic gases.
